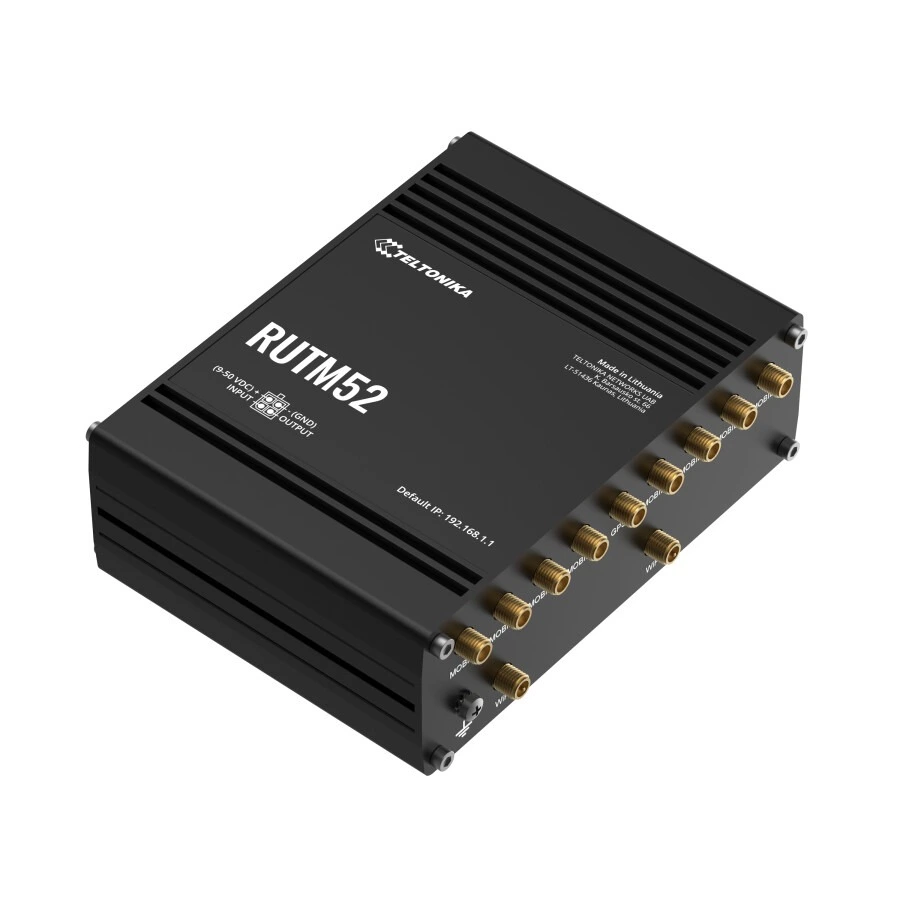

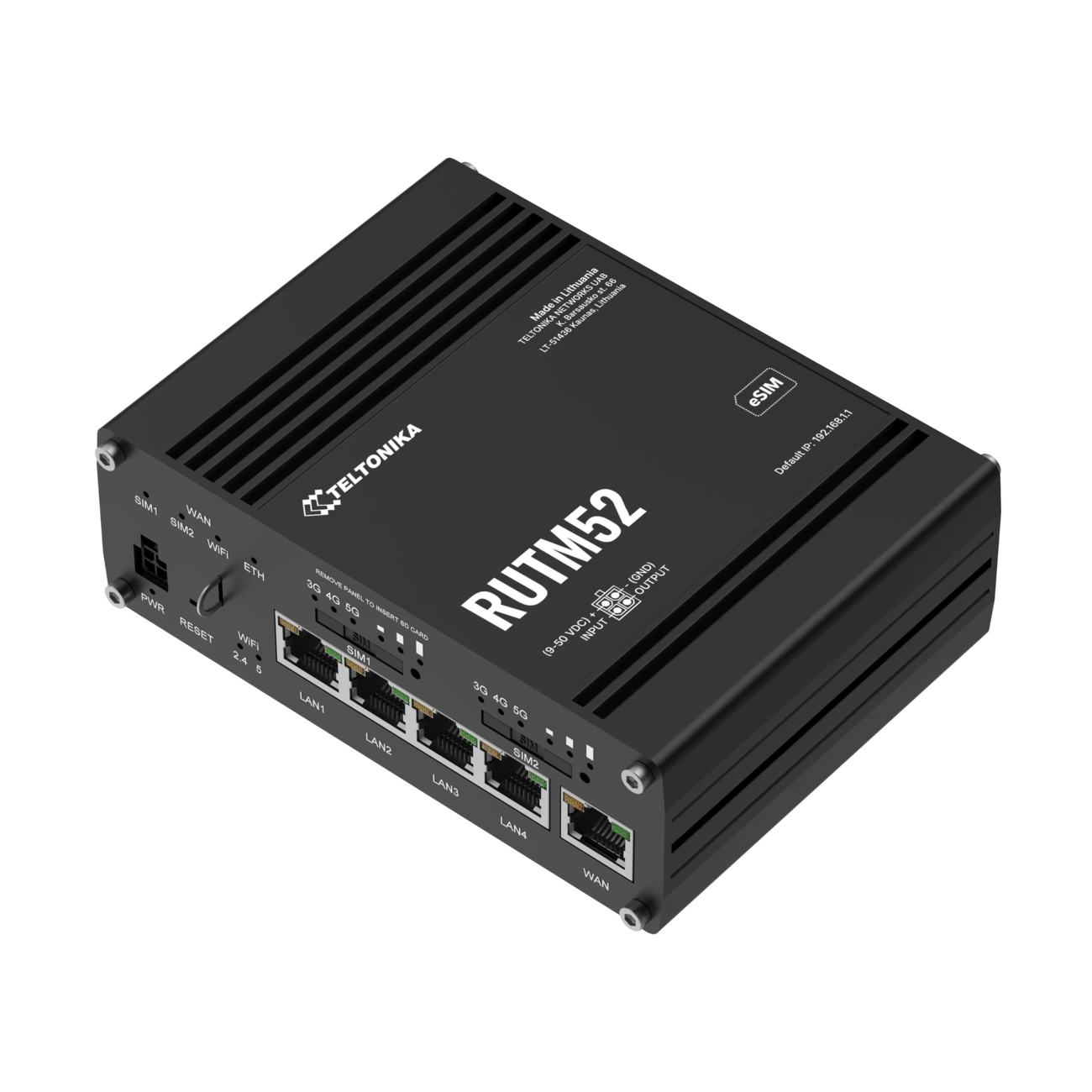

Router Celular Industrial 5G Teltonika RUTM52 WiFi

El RUTM52 es un router 5G preparado para el futuro, diseñado para aplicaciones de misión crítica, con módems 5G duales, capacidades multi-WAN y conmutación a la red 4G LTE Cat 20. Con doble ranura SIM, compatibilidad con eSIM y compatibilidad con las arquitecturas SA y NSA 5G, garantiza una conectividad ininterrumpida de alta velocidad hoy y en los próximos años. El equilibrio de carga, Wi-Fi 5 y cinco puertos Gigabit Ethernet mejoran el rendimiento, mientras que RutOS con protocolos industriales y varias VPN lo hacen versátil para configuraciones complejas. Compatible con RMS, el RUTM52 es ideal para una gestión remota segura y eficiente.

MODEM 5G DUAL Hasta el doble de velocidad celular y conexión permanente
DOBLE SIM Y eSIM™ Con conmutación automática por error, WAN de reserva y otros escenarios de conmutación
SA Y NSA Admite ambas arquitecturas para aprovechar la infraestructura 5G
A PRUEBA DEL FUTURO Compatible con versiones anteriores de 4G (LTE Cat 20)

sistema de gestión remota RMS

El sistema de gestión remota (RMS) de Teltonika Networks es una plataforma IoT todo en uno fácil de usar que proporciona una forma inteligente de estar al tanto de toda su solución conectada de forma completamente remota, segura y confiable.

Es una solución poderosa para el acceso y la administración remotos que permite a los usuarios ahorrar tiempo y costos operativos al mismo tiempo que es flexible y fácil de usar. Con RMS, puede administrar enrutadores y puertas de enlace de Teltonika Networks compatibles, llegar a dispositivos remotos, utilizar el poder del acceso a escritorio remoto y configurar túneles VPN seguros con solo unos pocos clics.

Para adaptarse a los requisitos de los diferentes perfiles de usuario, como MCI Electronics ofrecemos varias funcionalidades de RMS disponibles por separado, para que pueda elegir solo lo que necesita su negocio y ahorrar costos. Contáctanos acá.

Router 5G Dual: Un Salvavidas de Conectividad para los Primeros Intervinientes // Ciudad inteligente

Router 5G Dual para Transmisiones en Directo Impecables // Ciudad inteligente

Base de conocimientos WIKI

En nuestra amplia base de conocimientos Wiki puede encontrar de todo, desde el firmware más reciente, escenarios de uso y registros de cambios hasta certificados y guías de primeros pasos. acceder a la wiki

Características

Mobile

Mobile module 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO) 900/600Mbps UL (2×2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4×4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch Allows dual-modem functionality with independent SIM switching for each modem. The SIM switch automatically transitions between the physical SIM and eSIM based on conditions such as weak signal, data limits, roaming, and network issues. Both physical SIMs can operate simultaneously, with switching restricted to each modem’s SIM and eSIM
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed routing Framed routing: support an IP network behind 5G UE

Wireless

Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
WiFi security WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter Allowlist, blocklist
Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
VRF support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Security

802.1x Port-based network access control client
Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN

Port and tag-based VLAN separation
Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control

Flexible access control of SSH, Web interface, CLI and Telnet
TPM

Identification and authentication module, TPM 2.0 standard
SSL certificate generation

Let’s Encrypt and SCEP certificate generation methods

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE

GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP

SSTP client instance support
ZeroTier

ZeroTier VPN client support
WireGuard

WireGuard VPN client and server support
Tinc

Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
Tailscale

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

Supported modes

Client, Server
Supported connection types

TCP

MODBUS

Supported modes

Server, Client
Supported connection types

TCP
Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT
Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes

DNP3 Station, DNP3 Outstation
Supported connection

TCP

DLMS

DLMS Support

DLMS – standard protocol for utility meter data exchange
Supported modes

Client
Supported connection types

TCP
COSEM

Allows to scan meter COSEM objects for automatic detection and configuration

API

Teltonika Networks Web API (beta) support

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA

Firmware update from server, automatic notification
SSH

SSH (v1, v2)
SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email

Receive email message status alerts of various services
TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT

MQTT Broker, MQTT publisher
SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC

Management API over HTTP/HTTPS
RMS

Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub

Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core

Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

System Characteristics

CPU

MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM

256 MB, DDR3
FLASH storage

16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA

Update FW
RMS

Update FW/configuration for multiple devices at once
Keep settings

Update FW without losing current configuration
Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

FIRMWARE CUSTOMISATION

Operating system

RutOS (OpenWrt based Linux OS)
Supported languages

Busybox shell, Lua, C, C++
Development tools

SDK package with build environment provided
GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager

The Package Manager is a service used to install additional software on the device

Location Tracking

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA

NMEA 0183
NTRIP

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software

Supported server software TAVL, RMS
Geofencing

Configurable multiple geofence zones

Input / Output

Input

1 x Configurable digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high
Output

1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events

Email, RMS, SMS
I/O juggler

Allows to set certain I/O conditions to initiate event

Power

Connector

4-pin industrial DC power socket
Input voltage range

9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive)

Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC
Power consumption

Idle: < 5 W, Max: < 13 W

Physical Interfaces

Ethernet

5 x RJ45 ports, 10/100/1000 Mbps
I/O’s

1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs

6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power

1 x 4-pin power connector
Antennas

8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
Reset

Reboot/User default reset/Factory reset button
Other

1 x Grounding screw

Physical Specification

Casing material

Anodized aluminum housing and panels
Dimensions (W x H x D)

132 x 44.2 x 95.1 mm
Weight

560 g
Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature

-40 °C to 60 °C
Operating humidity

10% to 90% non-condensing
Ingress Protection Rating

IP30

Regulatory & Type Approvals

Regulatory

CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
